> NRP-H901

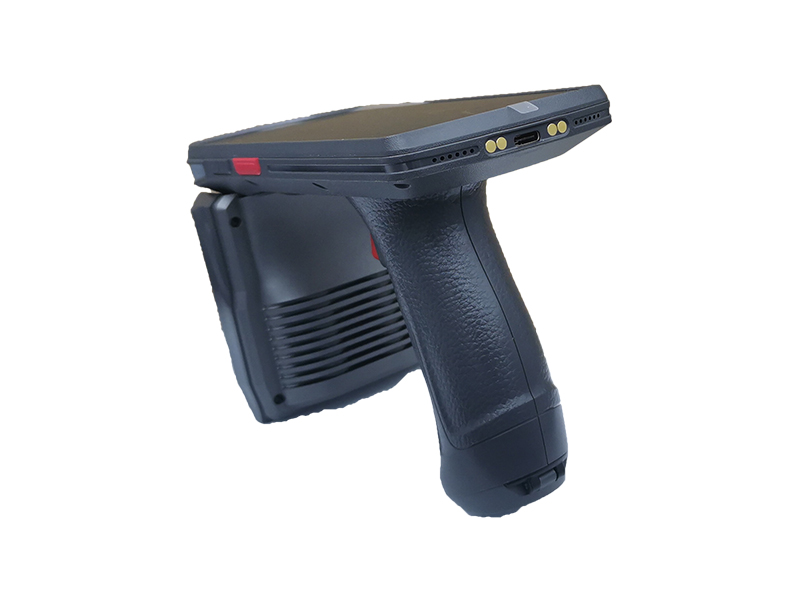

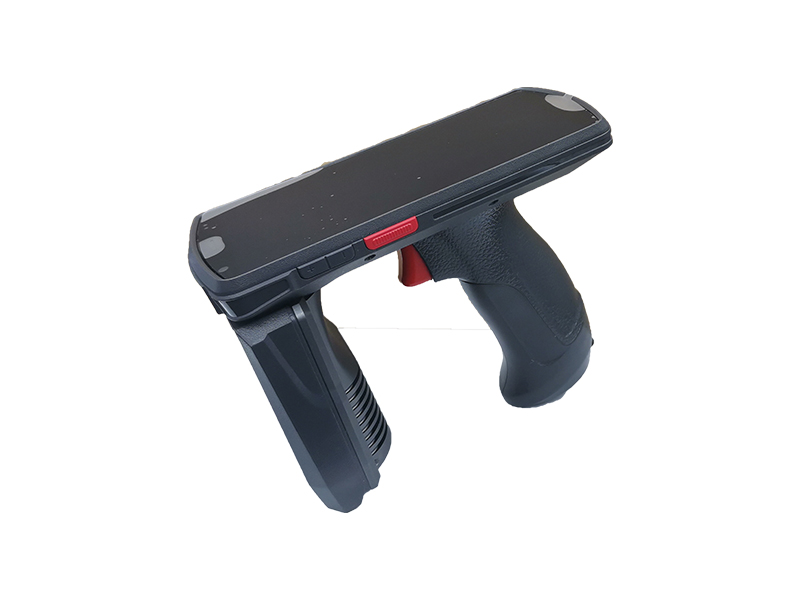

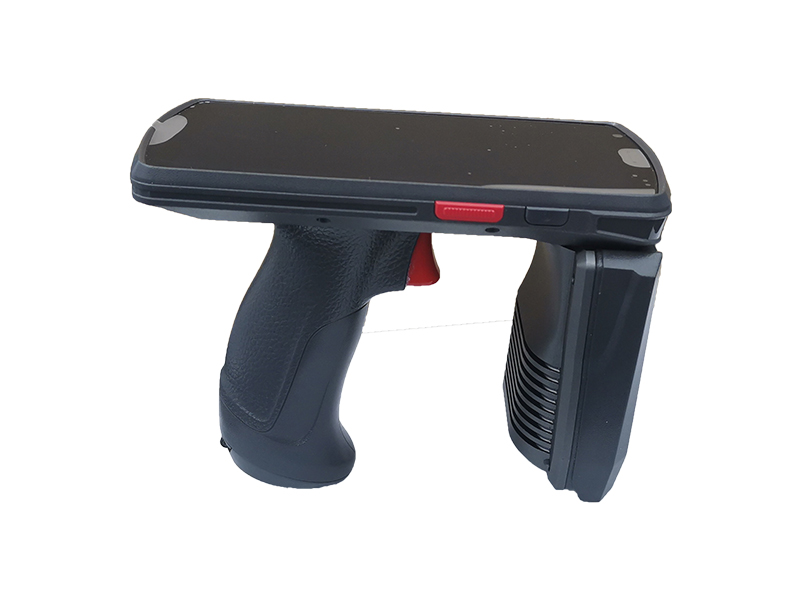

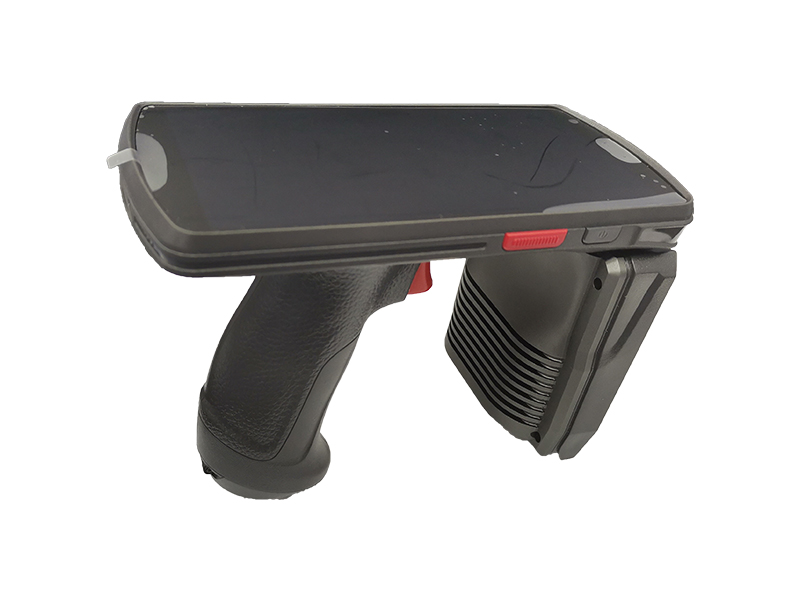

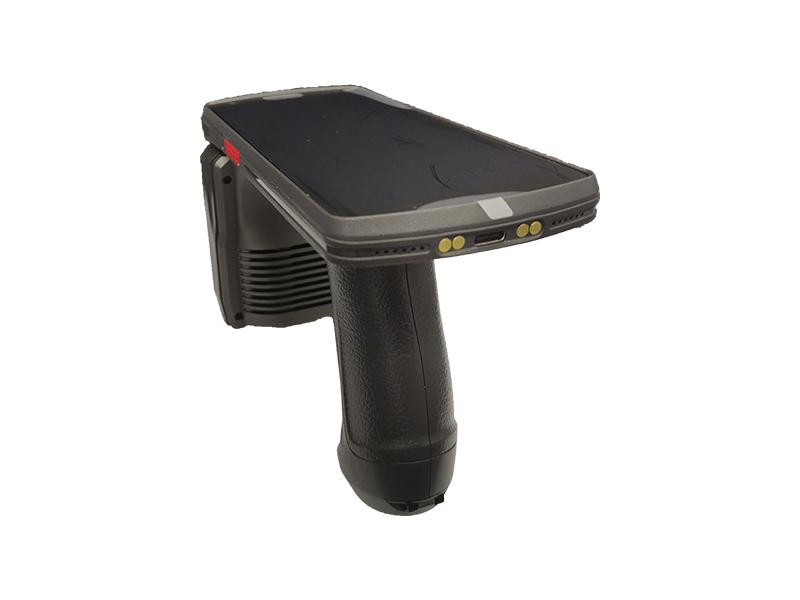

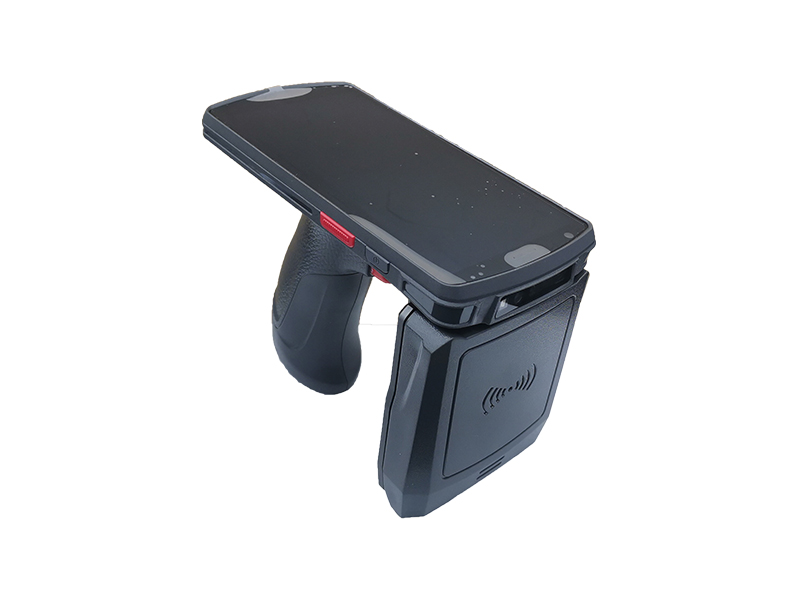

Product Name:NRP-H901

Product introduction：UHF handheld device, equipped with Android system, radio frequency identification function is developed based on Impinj Indy R2000 chip. Used in scenarios such as asset management and logistics inventory. Portable, easy

product details

Features
1	Android system, high-speed eight-core, 4G full Netcom, IP66 protection, 5.7 storage IPS screen. Comprehensive functions, high configuration and low price.
2	UHF reading and writing, barcode scanning, NFC reading and writing, etc., with rich extended functions.
3	Provide various function development routines and documents. Convenient for secondary development. System parameters

System parameters
CPU	Cortex-A53 octa-core 64-bit 2.0GHz high-performance processor
RAM+ROM	Micro SD (TF) card can be expanded to 128GB
System	Android 9.0
Data communication
WLAN	dual frequency 2.4GHz/5GHz, support IEEE 802 a/b/g/n/ac protocol
WWAN	2G：GSM（850/900/1800/1900MHz） 3G :WCDMA（850/900/1900/2100MHz） 4G：FDD：B1/B3/B4/B7/B8/B12/B20 TDD：B38/B39/B40/B41
Bluetooth	Support Bluetooth 2.1+EDR/3.0+HS, transmission distance 5-10 meters
GNSS	Supports GPS, Galileo, Glonass, Beidou
Physical parameter
Size	159mm75mm124mm (including handle)
Weight	＜500g
Display	5.7 inches IPS color display, resolution 720*1440
Touch screen	Corning Gorilla Glass, supports multi-touch, can be operated with water on the screen or with gloves
Battery	Optional rechargeable polymer battery (3.8V 5200mAh) removable Standby time> 350 hours Working time> 12 hours Charging time is 3-4 hours, using standard power adapter and data cable
Expansion	PSAM * 2、Nano SIM card1、TF card1
Interface	Type-C USB*1 OTG
Audio	Speaker (mono), microphone, earpiece
Keyboard	Power key, volume +/- keys, scan key2, handle scan button1
Sensor	Gravity, light, distance, vibration motor
Language/input method
Input method	English, Pinyin, Wubi, handwriting input, support soft keyboard
Language	Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysia, Singapore, etc.

Data collection
QR code scanning engine	Honeywell N3603
Barcode type	PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code
Camera
Front camera	1300W pixel HD camera Support auto focus, flash, anti-shake, macro shooting
Rear camera	200W pixel color camera
UHF UHF reader
Chip	Impinj Indy R2000
Frequency	920~925MHz 902~928MHz 865~868MHz（ETSI EN 302 208） Standards in other countries and regions (customizable)
Protocol	EPC Global C1 GEN 2 / ISO 18000-6C
Antenna	Circular polarization antenna (4.1dBi)
RF Power	33dBm ±1dBm，0~33dBm
Distance	0~10m
NFC（optional）
Frequency	13.56MHz
Protocol	ISO14443A/B, 15693
Distance	2~5cm
Environment
Working TEMP	-20℃ ~ 55℃
Storage TEMP	-40℃ ~ 70℃
Storage humidity	5%RH~95%RH
Configuration	Power adapter, data cable, protective film, manual
